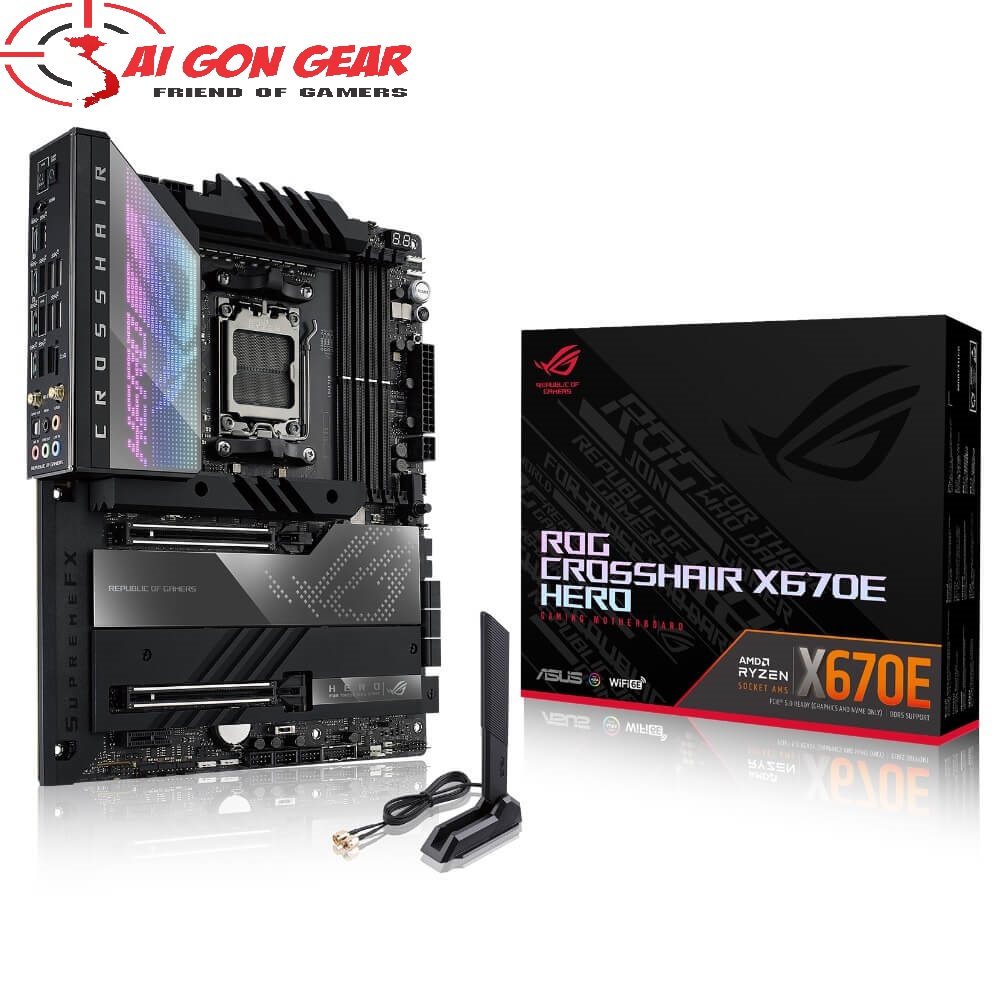

Mainboard Asus ROG CROSSHAIR X670E HERO DDR5

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

ROG CROSSHAIR X670E HERO

CPU hỗ trợ

AMD

Chipset

AMD X670

RAM hỗ trợ

4x DDR5 memory slots, support up to  128GB DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz, Un-buffered Memory

Khe cắm mở rộng

2 x PCIe 5.0 x16 slots, 1 x PCIe 4.0 x1 slots

Ổ cứng hỗ trợ

Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
6 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pinPCIe Power connector
Storage related
4 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration Mode Switch
1 x Aura RGB header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

Cổng kết nối (Back Panel)

2 x USB4 ports with Intel JHL8540 USB4
controller (2 x USB Type-C^®)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
9 x USB 3.2 Gen 2 ports(8 x Type-A + 1 x Type-C^®)
1 x HDMI^® port
1 x Wi-Fi Module
1 x Intel^® 2.5Gb Ethernet
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button

LAN / Wireless

1 x Intel^® 2.5Gb Ethernet

Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Kích cỡ

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
